Epoxy in Your Garage Floor, Built for Elgin Winters
A coated garage floor is a cleanable, salt-shedding surface bonded to your slab. Whether it lasts comes down to three things the brochure skips: what’s on the concrete now, how it is prepared, and how much coating actually goes down.
Garage floor epoxy coating systems, compared row by row
“Epoxy” covers everything from a kit off a big-box shelf to a multi-coat system several times as thick. The honest way to compare them is film thickness, cure conditions and what the manufacturer will put in writing about salt and hot tires. Each row uses one real data sheet, named in the row; open a row for prep, build and cure.
-
Dry film per coat3–3.5 mils, one coat Cars back on it3 days at 70–80°F Hot tiresNo claim on the sheet- Prep
- Degrease, then the kit’s own etch. The floor must be free of sealers and curing agents; if it was sealed, the sheet says the sealer “will have to be removed by grinding or shot blasting.” New concrete waits 28 days.
- Build
- One coat is the norm: 6–7 mils wet dries to 3–3.5 mils, because only about 53% of what’s in the can is solids. Color chips are sprinkled on, not broadcast to cover, and there’s no clear topcoat.
- Cure
- Air, material and floor between 60°F and 85°F. In an unheated Elgin garage that is a summer job. Foot traffic after 24 hours, cars after 3 days.
- Salt and slush
- The sheet makes no road-salt claim. A thin film is worn through first where tires park in salty meltwater.
- Hot tires
- No hot-tire claim on the sheet. Thin films on a poorly prepared floor are the classic case of hot-tire pickup.
- Where it fits
- A light-use garage or a budget refresh on a bare, sound, never-sealed floor.
Figures from Rust-Oleum EpoxyShield water-based kit data sheet; other products in the same family differ.
-
Dry film per coat8–10 mils base + 3–4 mils topcoat Cars back on it36–48 hours at 77°F Hot tires“No pickup or transfer” required- Prep
- Oil, grease, curing compounds and sealers removed. This spec also requires the slab to pass a plastic-sheet moisture test (ASTM D4263) before anything goes down.
- Build
- A 100%-solids epoxy base at 8–10 mils, colored flake broadcast into it, the excess scraped off, then a clear topcoat at 3–4 mils: at least 12 mils in total, about four times the kit’s film.
- Cure
- Floor at 50°F or warmer during application and through the full cure. Cars after 36–48 hours; full chemical resistance after 5–7 days at 77°F.
- Salt and slush
- Road salt is on the spec’s chemical-resistance list, with motor oil, antifreeze and brake fluid.
- Hot tires
- Listed as a performance requirement: no pickup or transfer.
- Where it fits
- A daily-driver garage that takes winter slush, where the floor should look the same in ten years.
Figures from ArmorGarage II epoxy system spec; other products in the same family differ.
-
Dry film per coat6–12 mils per coat Cars back on itWithin 24 hours Hot tiresNot stated on the sheet- Prep
- The same clean, bare, profiled concrete. It cures fast, so there is no time to fix a bad patch of prep once it is down.
- Build
- This product is used as a base coat straight on concrete and as a topcoat over partial or full flake. It is 80% solids by volume.
- Cure
- Applied anywhere from 30°F to 90°F on this sheet, which is why polyaspartic is the coating that can go down in a cold garage. Pot life is 30–35 minutes; recoat within 2–12 hours or the surface has to be abraded.
- Salt and slush
- The sheet claims excellent chemical and abrasion resistance but lists no specific chemicals.
- Sunlight
- Sold as “UV stable.” Epoxy tends to yellow where sun hits it, so a polyaspartic topcoat is common in garages with the door open all summer.
- Where it fits
- A one- or two-day turnaround, a late-fall job, or a UV-stable topcoat over an epoxy base.
Figures from ArmorGarage ARMPOLY80 polyaspartic data sheet; other products in the same family differ.
A mil is a thousandth of an inch, so the 12-mil system is about four times the kit’s single 3-mil coat. One product per row; other products in each family differ.
Prep for an epoxy resin garage floor: grinding vs acid etching
Every coating bonds to the top fraction of an inch of your slab, so the prep decides the job. The coatings industry grades prepared concrete against ICRI’s 10 surface profile chips, from CSP 1 (acid-etched) to CSP 10. Acid etching sits at CSP 1; diamond grinding at CSP 2.
The numbers are close. The difference is what each does to whatever is already on the floor. Most garage slabs have something: a curing compound from the day they were poured, a sealer, an old coat of paint, oil soaked in by the water heater. Acid can’t cut through any of it. A grinder takes it off with the weak top paste and leaves an even surface. Try it on the drawing: switch the method, then add an old sealer.
A quick test you can do tonight: drip water on the floor. If it beads instead of darkening the concrete, there’s a sealer on it, and one kit’s data sheet says plainly that sealer “will have to be removed by grinding or shot blasting.”
- CSP 1 acid-etched
- CSP 2 grinding
- CSP 3 light shot-blast
- CSP 4
- CSP 5
- CSP 6
- CSP 7
- CSP 8
- CSP 9
- CSP 10
- Acid etch, CSP 1. The smoothest of ICRI’s 10 profile chips. It opens a clean, bare slab slightly, but it can’t cut through a sealer, a curing compound or paint: on those floors it just beads up and the coating bonds to the old film.
- Diamond grind, CSP 2. One step rougher on ICRI’s scale, and even across the floor. It takes off the weak top paste along with old sealer and thin paint. One retail kit’s own data sheet says a sealed floor has to be ground or shot blasted before its epoxy goes on.
Sources: KTA-Tator on ICRI 310.2R surface profile chips; Rust-Oleum EpoxyShield technical data.
Epoxy garage floor covering for Elgin salt slush and hot tires
An Elgin garage floor spends the winter under meltwater. The station records about 32 inches of snow a year and a January average of 22°F (NOAA 1991–2020 normals). City crews treat the streets with road salt and a brine that includes calcium chloride, and every car carries that slush in and drops it in two puddles where the tires stop. NRMCA’s scaling sheet tells owners to hose salt off new garage slabs and to use salt sparingly; a bare slab left sitting in brine all winter is a candidate for scaling.
A bonded coating keeps that brine on top of the floor where a squeegee can push it out the door. It only works while the coating is intact and stuck. A thin film worn through at the tire paths lets brine under its edges, and a coating that lifts in summer from hot-tire pickup leaves bare concrete in exactly the spot that gets the salt in winter.
What to ask for on a salt-belt garage
- A system whose sheet lists road salt in its chemical resistance and states hot-tire resistance in writing.
- Film thickness in mils on the estimate, per coat and in total.
- Texture: flake and an anti-slip additive, because wet gloss is slippery.
- A plan for the apron edge, where slush sits longest.
Epoxy garage floor finish options: flake, clear and polyaspartic topcoats
Once the system is chosen, the finish is the part you see. These are the common ones on garage floors.
Full flake broadcast
Vinyl flakes thrown into the wet base coat until no base shows, scraped and sealed under a clear topcoat. It hides dust, tire marks and the small imperfections of an old slab, and its texture gives grip. It is the most common residential garage finish for a reason.
Partial flake or solid color
A light scatter of flake over a solid base, or no flake at all. It looks cleaner and more modern, and it shows every dropped screw, every tire mark and every flaw in the concrete under it.
Clear and UV-stable topcoats
The topcoat takes the wear. A polyaspartic or urethane topcoat over an epoxy base resists sunlight better than epoxy alone; the 100%-solids system in the table pairs its epoxy base with a topcoat its spec calls “non-yellowing.” Metallic and quartz finishes exist too; they are showroom looks that need an even better slab underneath.
Garage floor crack repair before coating
Cracks don’t disappear under a coating; they get filled and then hidden. Fine shrinkage cracks are opened with a grinder, filled with an epoxy or polyurea crack filler and ground flush, and pitted or spalled patches near the door get the same treatment. Under flake, they mostly vanish.
Joints are different. Control joints are where the slab is meant to move; NRMCA calls them “pre-planned cracks.” A coating bridged over a working joint cracks along it, so the joint is cleaned out and honored in the coating. A crack that keeps opening, or a slab that has dropped at one end, is a concrete repair or slab leveling question before it is a coating question. A badly scaled but sound floor can get a cement overlay first; see concrete resurfacing. If the slab is broken up, the money belongs in a new floor; the garage slab page covers what Elgin asks for.
Epoxy garage floor cost in Elgin
There is exactly one published figure for the Elgin area, and it comes with caveats. Treat it as a sanity check, not a price.
-
Listed as a related project on HomeAdvisor’s Elgin patio-paver page, with no low, high or average, no floor size and no coating system named. HomeAdvisor’s stand-alone floor-coating page for Elgin showed no figures. Source: HomeAdvisor, Elgin related projects
Thin line: reported low to high. Thick band: typical range. Tick: average. Published third-party estimates for the Elgin area, not our prices; your written estimate depends on your site.
What moves a garage coating price
- Removal: grinding off old paint, sealer or a failed coating.
- Repairs: cracks, spalls and pitting filled before coating.
- System: one thin coat vs a 12-mil, three-step system vs fast-cure polyaspartic.
- Moisture: a slab that fails a moisture test needs a different approach or no coating.
- Size and layout: one stall, two or three, steps and a stem wall.
- Season: heat for an epoxy cure in cold weather, or a polyaspartic instead.
Garage coatings sit alongside the driveways, slabs and repairs we handle as a concrete company in Elgin.
Send your garage floor details for a coating estimate
Tell us the garage size (one, two or three stalls), whether the floor has ever been painted or sealed, and whether the garage is heated. Photos of the whole floor and of any cracks help, and the water-drop result tells us a lot.
Garage floor epoxy questions from Elgin homeowners
How long before I can park on a new epoxy garage floor?
It depends on the system and the temperature. On the data sheets cited on this page: about 3 days for a water-based kit, 36 to 48 hours for a 100%-solids epoxy system at 77°F, and within 24 hours for a polyaspartic. Cold slabs cure slower.

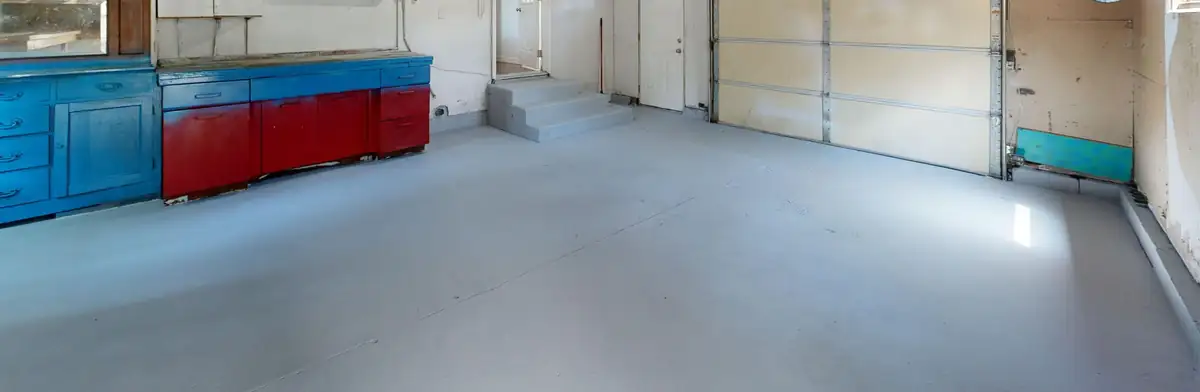

Can you put epoxy over a painted garage floor?
Not over loose or peeling paint. Old paint and sealer come off by grinding first, because the new coating can only hold as well as the layer it sits on. A floor that beads water has a sealer on it, and acid etching won’t get through that.
Can epoxy be installed in winter?
In a heated garage, yes. Many epoxies need the floor at 50°F or warmer through the cure; the kit we cite asks for 60°F to 85°F. Polyaspartic is the exception: the product we cite can go down from 30°F.
Is an epoxy garage floor slippery?
A glossy coating is slick when wet, and snowmelt makes it wet. Flake broadcast adds texture, and an anti-slip additive in the topcoat adds more; one spec we cite builds it into the topcoat for exactly that reason.
Will epoxy hide cracks in my garage floor?
Filled hairline cracks mostly disappear under flake. Control joints and moving cracks don’t: a coating bridged over them cracks along the same line. Sunken or heaved slabs need leveling or replacement before any coating.
Can my basement floor be coated too?
Often, after a moisture test. Basement slabs are more likely to have water coming up through them, and a coating over a damp slab can blister and peel. The same prep and system choices apply.
Terms used on this page (6)
- Surface profile
- How rough the concrete is after prep, graded from glass-smooth to coarse. Coatings need enough profile to grip; diamond grinding produces it evenly.
- Acid etching
- Washing the slab with acid to open its surface before coating. ICRI’s profile chips put it at CSP 1, the smoothest of 10 steps, and it does nothing to old sealer or paint.
- Hot-tire pickup
- Warm tires softening a thin floor coating and pulling it off the slab when the car backs out. The classic failure of one-part epoxy paints and poorly bonded coatings.
- Polyaspartic
- A fast-curing aliphatic polyurea coating used as a clear topcoat over epoxy or as a whole system. It holds its color in sunlight better than epoxy, which tends to yellow.
- 100%-solids epoxy
- Epoxy with no water or solvent to evaporate, so the thickness that goes down is the thickness that stays. Water-based epoxy paints lose much of their wet film as they dry.
- Flake broadcast
- Throwing colored vinyl flakes into a wet base coat, usually until no wet coat shows (full broadcast). The excess is scraped and vacuumed off before the clear topcoat.
